ZEQD-Pre™

Stereo Reverberant Filter

Towers teleports your sound into a vast stereophonic expanse, weaving it into its unique resonant filtered feedback networks. Reflections hang in the air and move in and out of a sprawling multidimensional soundscape, where they don’t just fade away—they radiate, breathe and drift endlessly into the void.

The filter frequency offers three distinct modes of navigation: Manual Mode puts the player in charge of the filter frequencies.  Envelope Mode where playing dynamics breathe and morph into everchanging filter movements. LFO Mode where the player surrenders control to a slow-moving oscillator that sweeps across the stereo field.

Three Distinct Modes of Operation

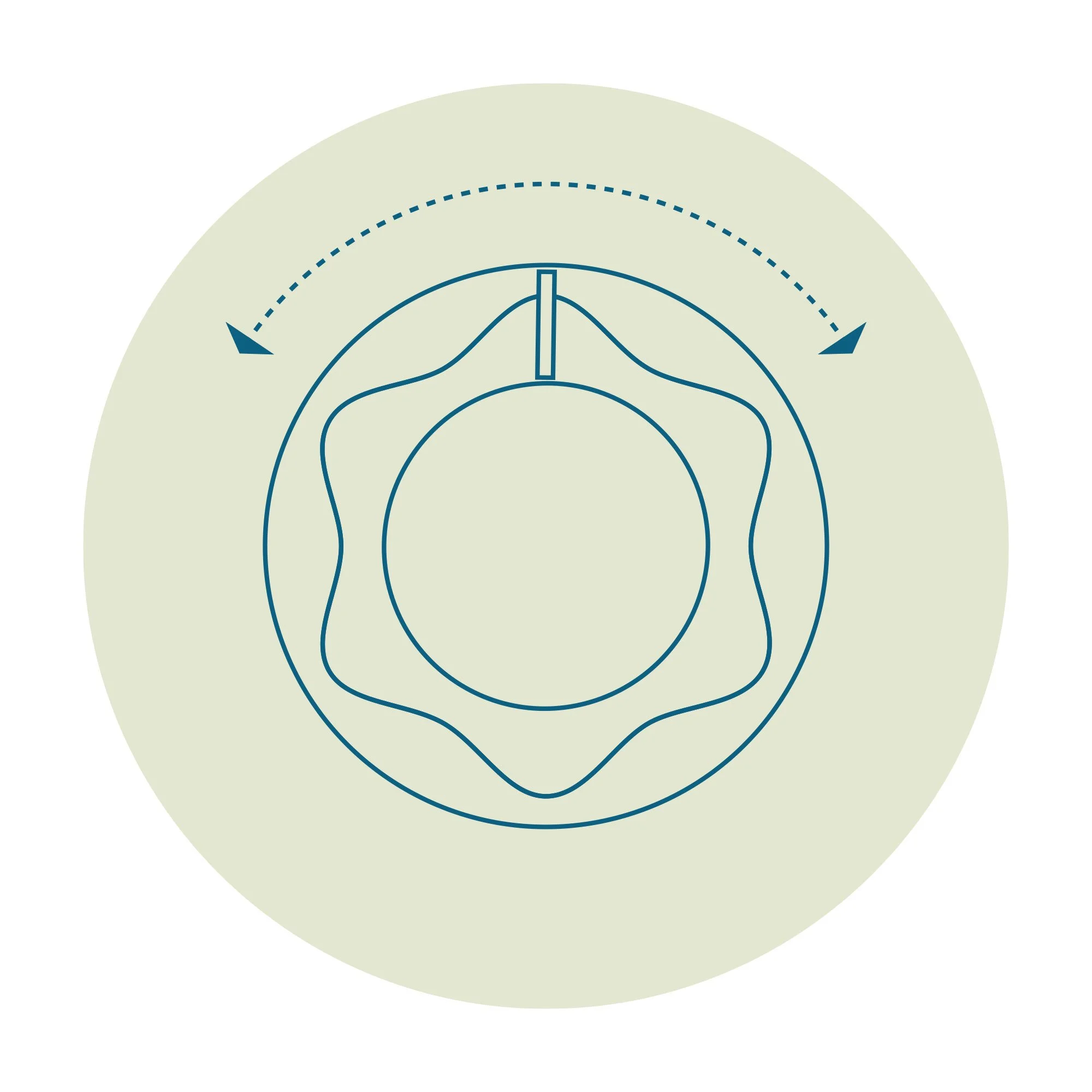

Manual Mode

The filter frequency is manually changed by adjusting the Frequency control. This works across the stereo field, with the left channel opposite the right.

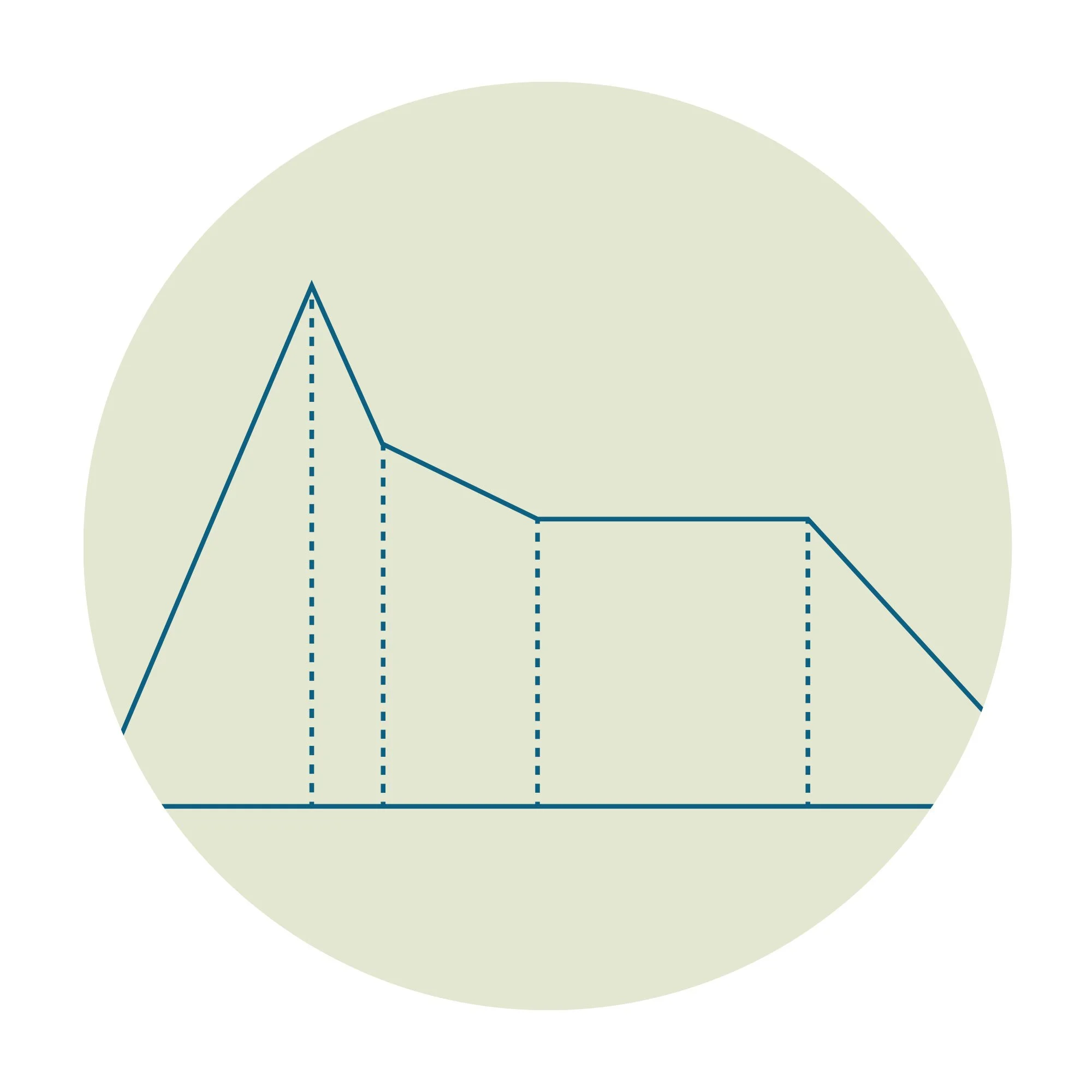

Envelope Mode

The filter frequency is changed with an envelope that is controlled by picking dynamics. In this mode, the Frequency control adjusts the sensitivity of the envelope.

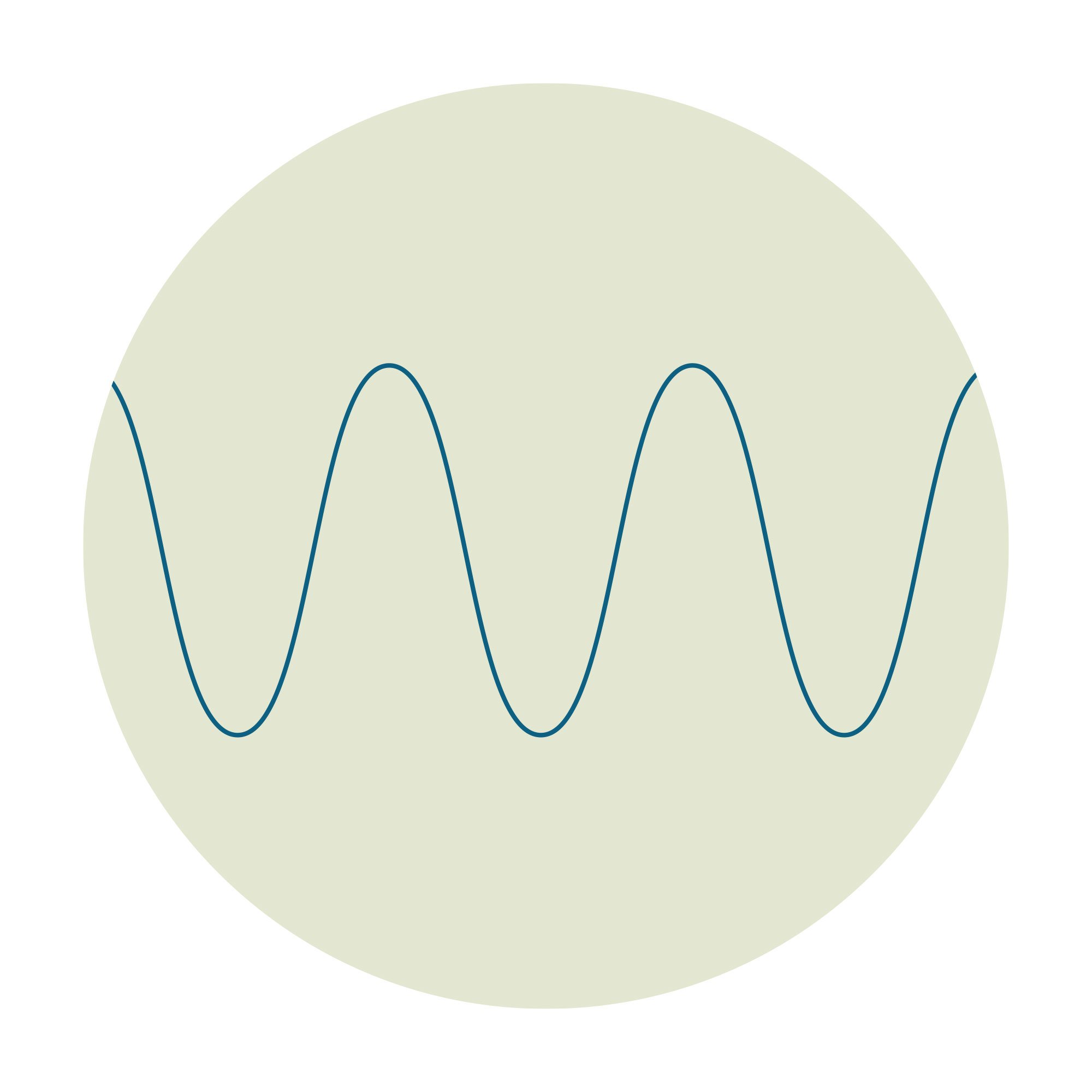

LFO Mode

The filter frequency is controlled by a slow moving LFO, and the Frequency control adjusts the rate. This mode also sweeps across the stereo field creating a slow panning filter effect.

Design Notes

At the heart of Towers lies an architectural marvel of aural alchemy—your input signal is fed into an array of infinitely repeating micro-echoes, creating dynamic generative impulses which feed an immense cathedral style reverb where the Length control shapes the decay time and density of reflections. This reverberant foundation is then interwoven with a resonant low-pass filter that intersects the delay and reverb pathways at multiple points, crafting a massive, unearthly sound that transcends the limitations of traditional hardware. The result is not merely an effect, but an experiential journey into the expanse.

The filter frequency is your spectral guide through these hazy realms, offering three distinct modes of navigation. In Manual Mode, you are the commander of your own frequency. By turning the Frequency control, you can create opposing movements between left and right channels. Envelope Mode transforms playing dynamics into filter movement, where each strike of the strings becomes a catalyst for harmonic resonance while the Frequency control maintains proper sensitivity. LFO Mode surrenders control to a slow-moving oscillator that sweeps across the stereo field, and the Frequency adjusts the rate at which it sways.

The resonant low-pass filter, reminiscent of those found in many beloved vintage synthesizers, generates warm and ringy tones that impart layers of dark atmosphere into the reverberated echoes. Through the Filter control, you determine how intensely this harmonic disturbance intertwines with the reverb pathways, while the Mix control becomes your balance between the celestial realms above and the grounded reality below. Eight user assignable presets await to capture and recall your most cherished settings with the turn of a knob and press of a switch.

Towers can be further pulled across space and time by initiating the extraordinary phenomenon known as Stretch. This spellbinding feature doubles the length of reverb effect by slowing the processor speed which generates a lo-fi effect that pulls apart the delay lines while smearing the filter and lowering the frequency responses. Pleasant surprises and delightful musical inaccuracies will emerge, creating unique atmospheres that serve as the ultimate vibe setter. With the stretch footswitch, you can tap it for an instantaneous effect or hold it and marvel as the entire system of Towers descends into the abyss, spawning mesmerizing artifacts along the way.

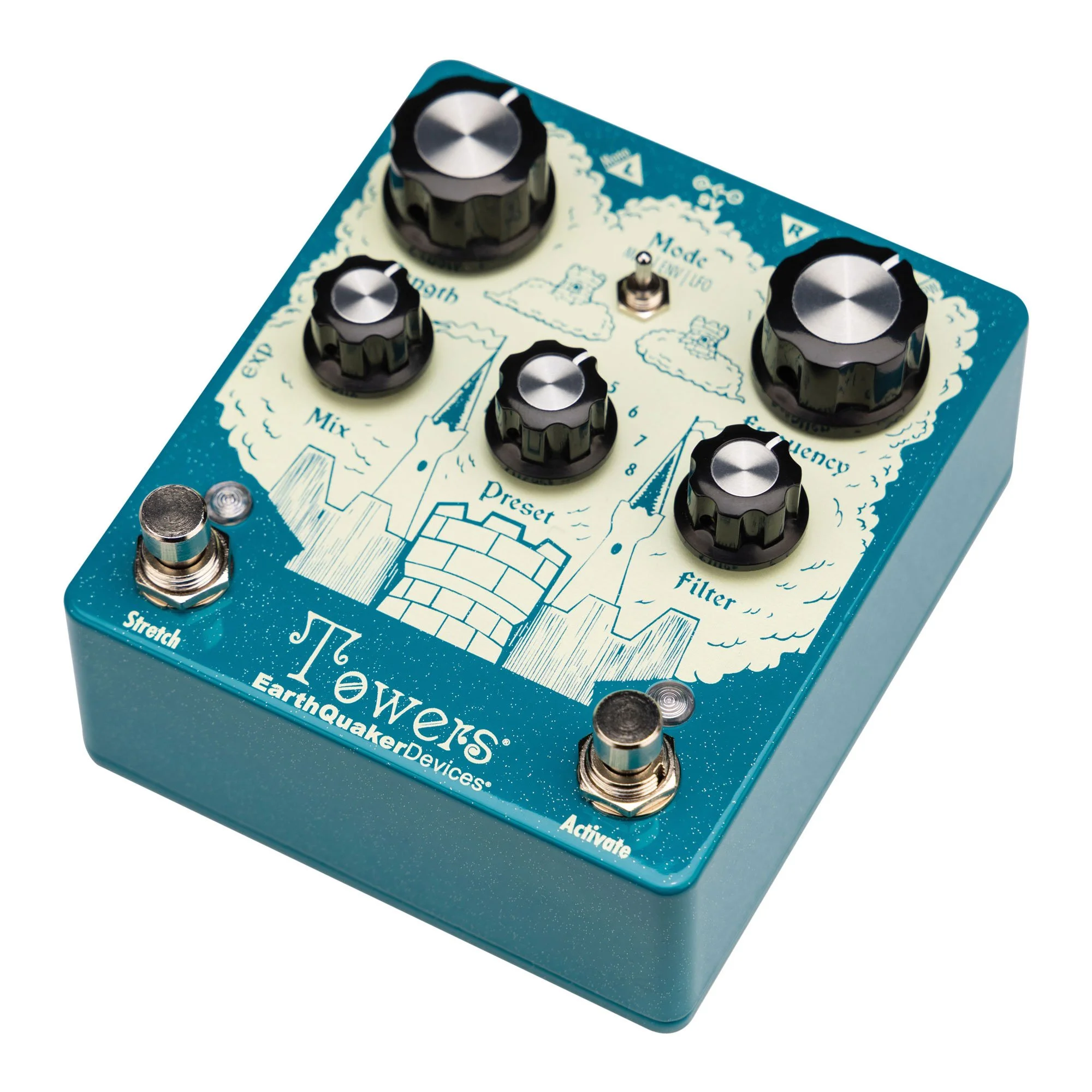

Mode: 三つのモードを搭載。トグルスイッチを使って選択します。モードの違いは以下の通りです。

Length: リバーブの長さの設定。反時計回りで短く、時計回りで長くなります。Stretch機能の長さの設定時もこのノブを使用します。

Mix: リバーブと原音のバランスの設定。

Stretchスイッチ: Stretchスイッチを使用して、タワーズの残響音の長さを引き伸ばす事ができます。残響音は二倍の長さまで引き伸ばされ、その際はピッチベンド効果が生まれ、モーフィングする様に残響音が伸びて行きます。

Frequency: フィルターの帯域の設定ですが、使用モードによって機能が変化します。

Filter: レゾナントローパスフィルターの効き具合の設定。リバーブに混ぜるフィルター効果の強さや深さを調整します。

Preset: ご希望の番号にユーザーの作った音色を保存、呼び出しができます。

Activeスイッチ: ペダルのオン/オフ。

寸法 12.07 x 10.80 x 6.35 (cm)

消費電流 85 mA

入力インピーダンス 500 kOhm

出力インピーダンス 100 Ohm

TRS expression pedal wiring:
Tip: Wiper
Ring: +3.3V
Sleeve: Ground

Tails or Full Bypass Switching

Towers can operate in two different bypass states: Tails or Full Bypass. It comes factory set in Tails Mode which allows the reverb effect to naturally decay after the effect is bypassed and is indicated by a Green Activate LED. Full Bypass will cut the reverb effect completely when the effect is bypassed and is indicated by a Red Activate LED.

電源

この製品は９V、ACアダプターで2.1mmのセンターマイナスのアダプターで使用できます。デイジーチェインやトランス方式でないパワーアダプター等の使用ではノイズが乗る事が有りますので当社では推奨しておりません。また故障の原因になりますので9Vを超える電源は使用しないでください！
